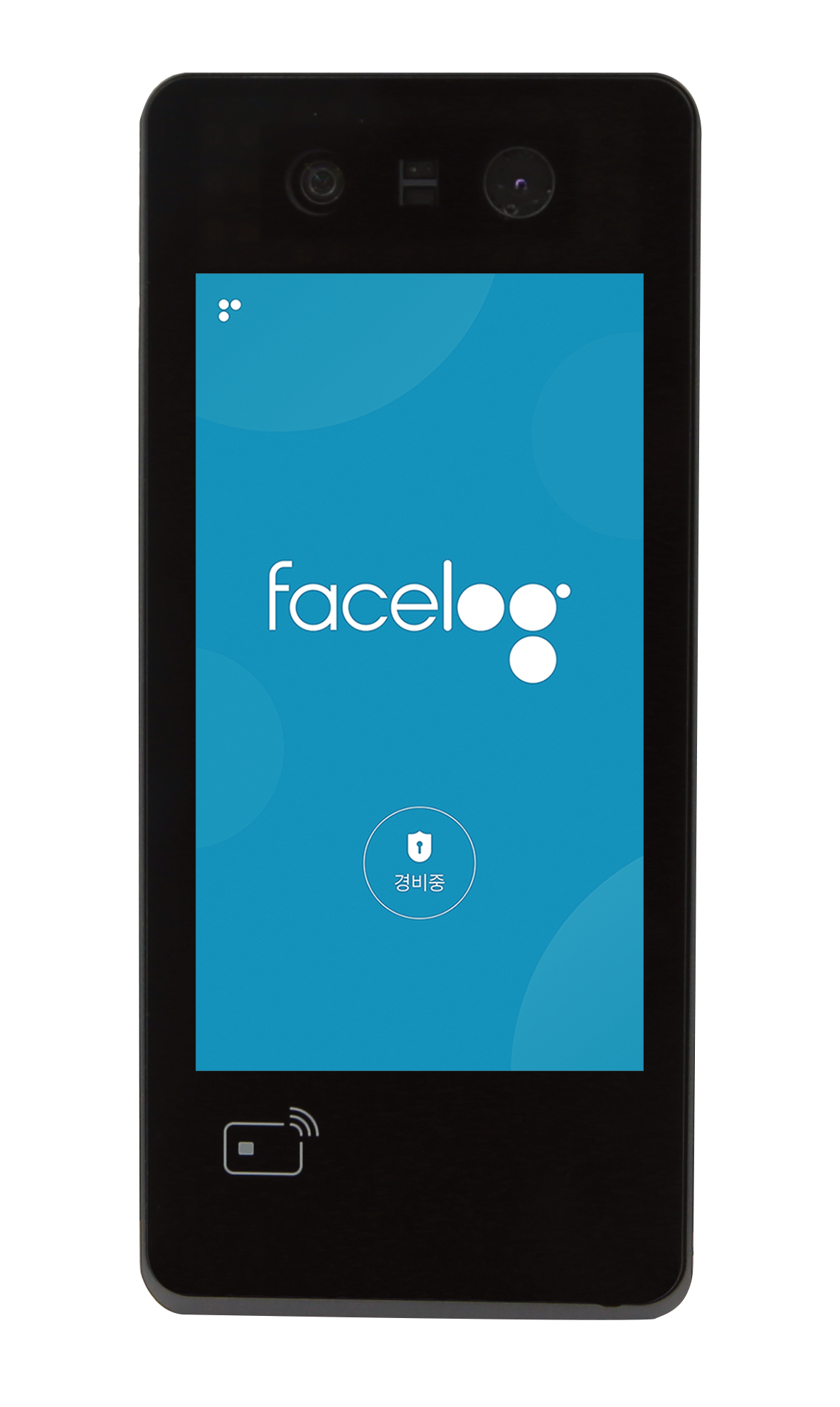

FACELOG-T
Face Recognition & Thermal Imaging Terminal

Face Log is the cutting-edge facial recognition and access control device for ensuring multi-recognition system, various communication environment, and high-quality performance.
This device shows fast recognition, simple design, and diversified user-friendly interfaces.

Minimized Light Interference

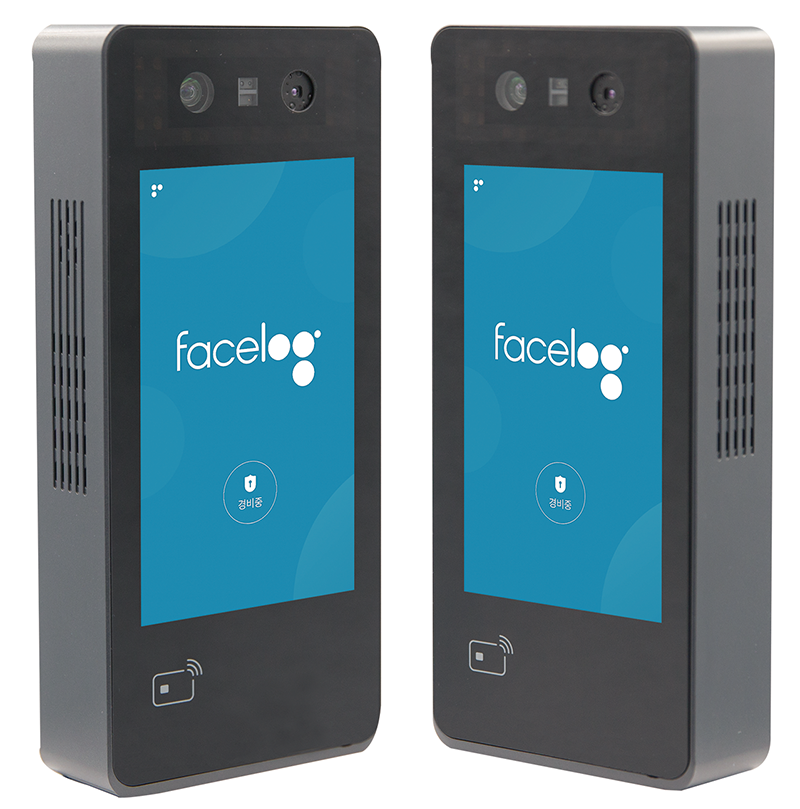

Easy and Friendly Design

Cutting-edge tablet-shaped design, Android-based easy and friendly GUI, 5" LCD

Specification

Operation mode Face, Fingerprint, NFC
Thermal Camera Technology : α-VWOX Micro-bolometer
Active array size : 80x60
Pixel size : 35㎛
Spectral response : 8~14㎛
Pixel operability : Over 99.5%
Thermal time constant : <21.19msec
NETD : 150mK(F/1, 30Hz, FOV52°)
Frame Rate : 9Hz~30Hz
RF option NFC & RFID 13.56Mhz supported
Operating range 30~70cm
Face Camera Rotation Angle Cover range 140~190cm
FAR Under 0.1%
Speed Under 0.52 seconds
(except for proximity sensor=based device's wake-up time)
under 500ms of recognition speed based on 1 template per person to recognize 1,000 persons
Max. User (1:1) over 10,000 persons
Suitable for crowded environments as the identification number is used for verification in one to one case.
(Same method is applied to distribution centers of major companies)
Max. Image Log Under 300MB is recommended in consideration of the capacity of a disk (and speed)
Bluetooth BT3.0, BT4.0 SUPPORT
NFC NFC & RFID 13.56Mhz supported
WiFi Yes (802.11 b / g / n), 2.4GHz / 5GHz
TCP / IP Yes
RS-232 Yes
Wiegand 1ch In and 1ch Out
Relay 1Relay
USB 2.0 Host -1CH, OTG -1CH
OS Android 7.0
CPU 1.5 GHz Quad Core
Memory eMMC 16GB or 32GB, DDR RAM 2GB
LCD 5" IPS LCD, 720 x 1280
Dimensions 74 x 184 (mm)
Certificates KC, CE, FCC, and etc.

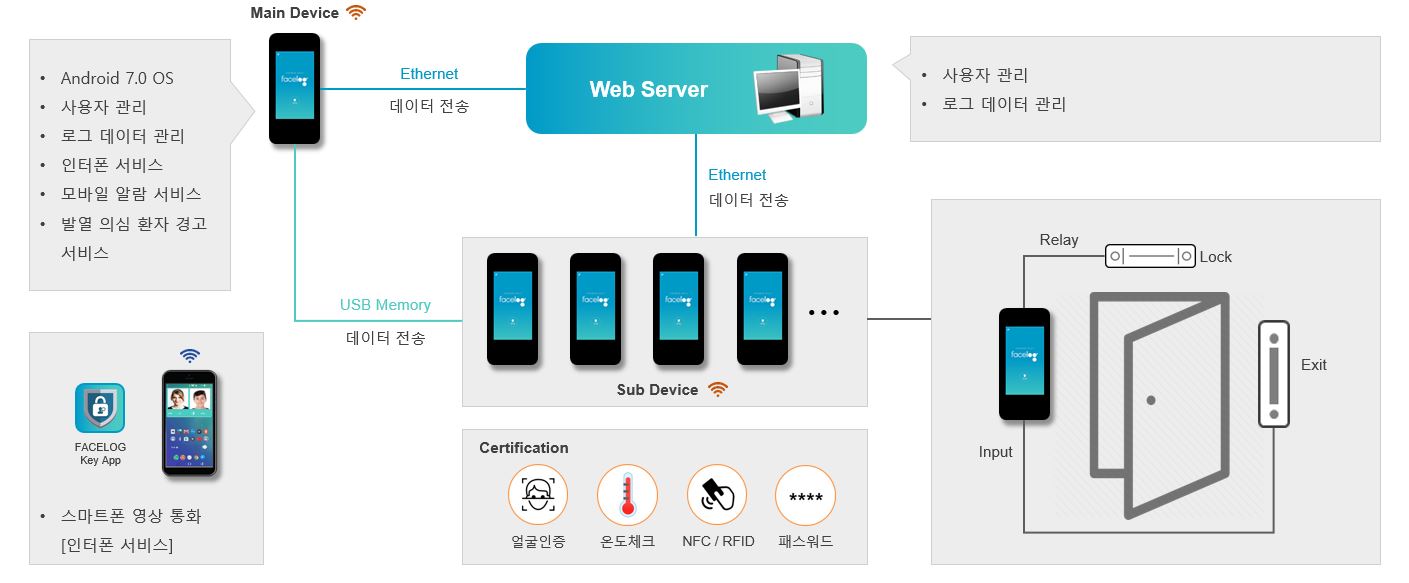

System Configuration

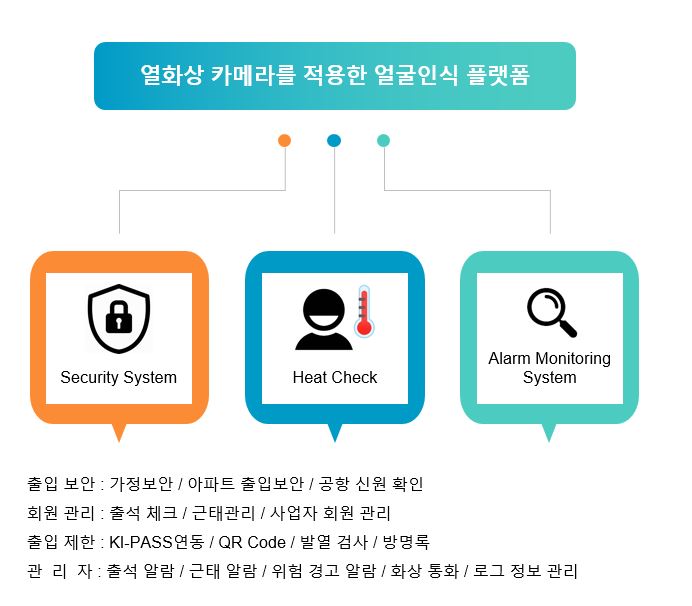

Internal Information Management
